Inbuilt anti rotation feature and high pressure sealing
Fitment in less than 1 turn rotation with inbuilt anti rotation feature and high pressure sealing.

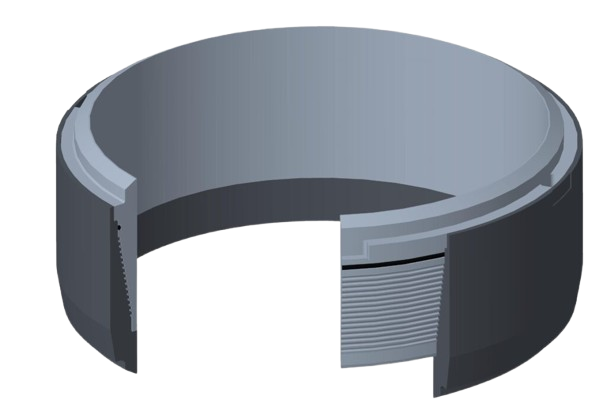

UDT-Leopard is the most popular high strength connector which has been used in many different applications environment and drilling programmes for land, platform, jack up, subsea/deep water including highly deviated deep well.
UDT-Leopard combines the advantages of a preloaded thread-type connector and the rapid make-up in 5/8th turn desired for offshore operations. It has mechanical strength characteristics higher than those of the casing pipe.
Key features of all UDT Swift Connectors
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Self-aligned & no cross threading
Pipe Table
| Pipe Nominal OD (in) |
(mm) | Pipe Wall Thickness (in) |
(mm) | Grade X-52 | Grade X-56 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tension Yield (kips) |
Bending Yield (kips.ft) |
Burst Pressure (psi) |
Collapse Pressure (psi) |
Tension Yield (kips) |
Bending Yield (kips.ft) |
Burst Pressure (psi) |
Collapse Pressure (psi) |
||||
| 18.625 | 473 | 0.435 | 11 | 1300 | 481 | 2138 | 638 | 1400 | 518 | 2302 | 638 |
| 20 | 508 | 0.438 | 11.1 | 1398 | 558 | 1991 | 514 | 1506 | 601 | 2144 | 514 |
| 20 | 508 | 0.5 | 12.7 | 1593 | 631 | 2275 | 772 | 1715 | 680 | 2450 | 772 |
| 20 | 508 | 0.625 | 15.9 | 1978 | 774 | 2844 | 1415 | 2130 | 834 | 3063 | 1449 |
| 20 | 508 | 0.812 | 20.6 | 2547 | 978 | 3697 | 2451 | 2743 | 1054 | 3981 | 2518 |
| 20 | 508 | 1 | 25.4 | 3104 | 1170 | 4550 | 3904 | 3343 | 1260 | 4900 | 4089 |
| 24 | 610 | 1 | 25.4 | 3757 | 1729 | 3792 | 2612 | 4046 | 1862 | 4083 | 2692 |
| 26 | 660 | 0.75 | 19.1 | 3094 | 1582 | 2625 | 1165 | 3332 | 1704 | 2827 | 1182 |
| 26 | 660 | 1 | 25.4 | 4084 | 2049 | 3500 | 2163 | 4398 | 2206 | 3769 | 2252 |
| 30 | 762 | 1 | 25.4 | 4738 | 2770 | 3033 | 1631 | 5102 | 2983 | 3267 | 1681 |
| 30 | 762 | 1.5 | 38.1 | 6984 | 3950 | 4550 | 3904 | 7521 | 4254 | 4900 | 4089 |
| 36 | 914 | 1 | 25.4 | 5718 | 4057 | 2528 | 1054 | 6158 | 4369 | 2722 | 1063 |
| 36 | 914 | 1.5 | 38.1 | 8454 | 5834 | 3792 | 2612 | 9104 | 6283 | 4083 | 2692 |
| 36 | 914 | 2 | 50.8 | 11110 | 7457 | 5056 | 4766 | 11960 | 8031 | 5444 | 5021 |
Connector Table
| Type | Material Yield (ksi) |
Pipe Nominal OD | Pipe Wall Thickness | Connector OD | Connector ID | Make Up Length | Tension Yield | Bending Yield | Burst Pressure | Collapse Pressure | Make Up Torque | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | klps | MN | (kips.ft) | (MNm) | (psi) | (MPa) | (psi) | (MPa) | (kips.ft) | (kNm) | ||
| SIF | 70 | 18.625 | 473 | 0.435 | 11 | 19.91 | 506 | 17.76 | 451 | 8 | 203 | 1477 | 6.6 | 547 | 0.7 | 2900 | 20 | 744 | 5.1 | 18 to 24 | 24.4 to 32.5 |
| SDIF | 80 | 18.625 | 473 | 0.435 | 11 | 19.91 | 506 | 17.76 | 451 | 8 | 203 | 1685 | 7.5 | 624 | 0.8 | 3300 | 22.6 | 868 | 6 | 18 to 24 | 24.4 to 32.5 |
| S | 70 | 20 | 508 | 0.438 | 11.1 | 21.19 | 538 | 18.75 | 470 | 8.75 | 222 | 2099 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 |
| SIF | 70 | 20 | 508 | 0.5 | 12.7 | 21.82 | 554 | 19.12 | 486 | 8.75 | 222 | 2099 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 |
| S | 70 | 20 | 508 | 0.5 | 12.7 | 21.19 | 538 | 18.5 | 470 | 8.75 | 222 | 2270 | 10.1 | 900 | 1.2 | 2700 | 18.6 | 901 | 6.2 | 20 to 26 | 27.1 to 35.3 |
Connector Accessories
Anti Rotation Device (Shear Tools)
During material shipment, we take extra care of the threads by providing PP or Metal protectors as required to prevent them from any damage. UDT conducts 100% fitment test of connectors with protectors during final inspection to ensure that they are properly fitted.
Anti Rotation Device (Shear Tools)
During material shipment, we take extra care of the threads by providing PP or Metal protectors as required to prevent them from any damage. UDT conducts 100% fitment test of connectors with protectors during final inspection to ensure that they are properly fitted.
