PMM SLIM SPLIT WINCH

Compact 73-160 HP diesel-powered skid winch with single or dual drum versatility.

  • Home / PMM SLIM SPLIT

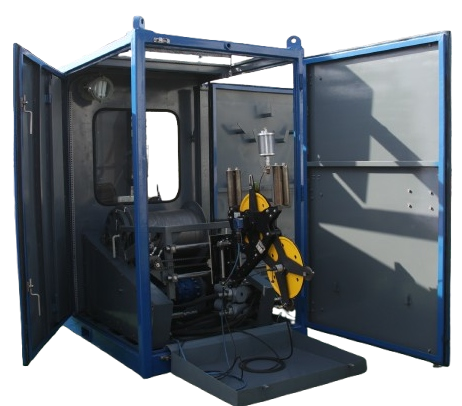

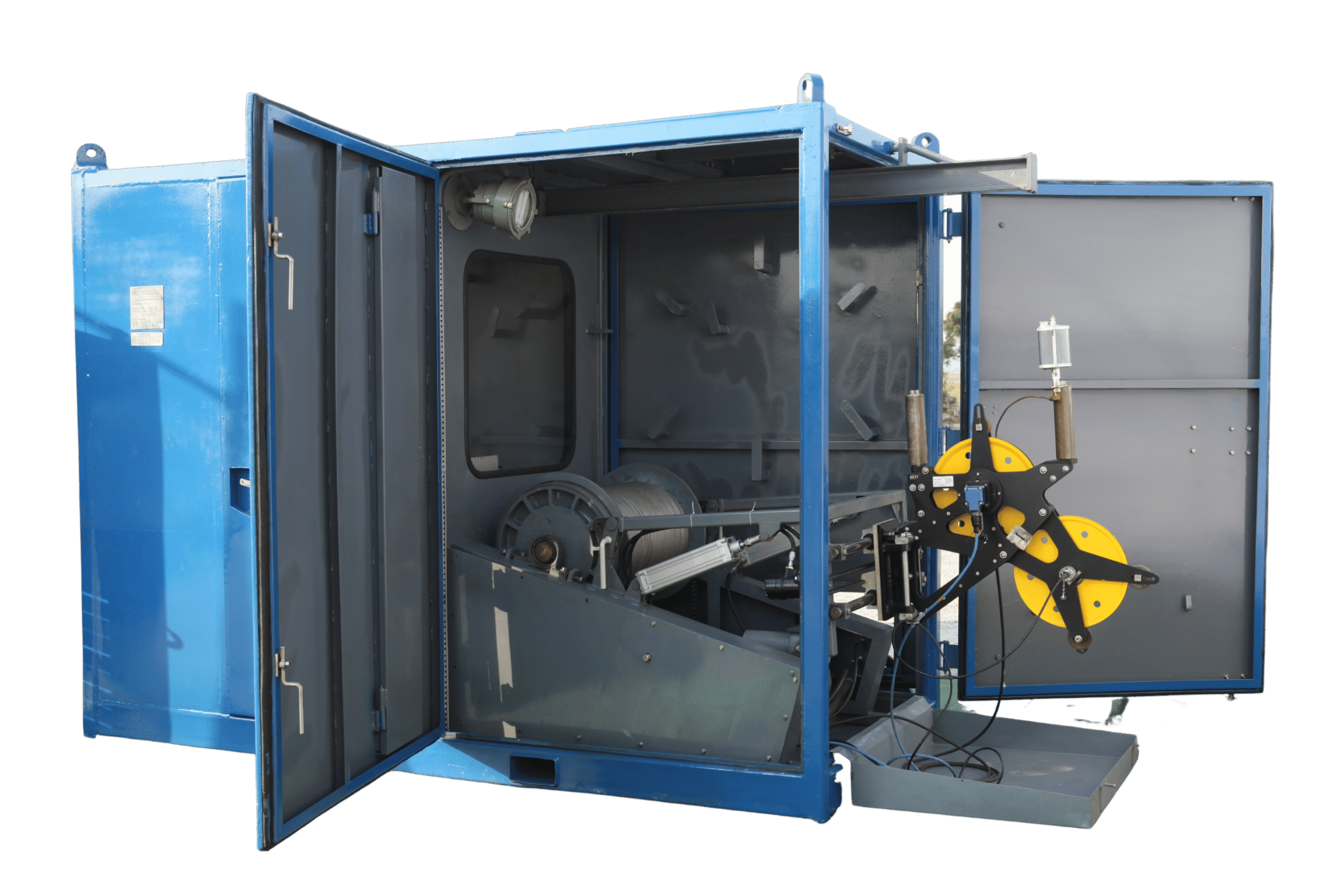

PMM SLIM SPLIT WINCH

PMM make Skid mounted one or two piece wireline unit comprising power pack module with 73-160 hp diesel engine and winch unit. This is compact , versatile , self-contained wireline winch unit may be supplied in single or dual drum configuration.

OPERATIONS AND AREA OF USAGE

These units can be used in both offshore and onshore areas (in both Zone-2 & Rig safe zones) and can be used for Production and Reservoir operations.

DIMENSIONS AND WEIGHT

(for single drum unit) (approx.)

  • Reel Skid : Length = 3.35m, Width = 1.5m, Height = 2.5m
  • Power Skid : Length = 1.8m, Width = 1.2m, Height = 2.5m
  • Weight of Reel skid = 3000 kg (without wire)
  • Weight of Power skid = 2500 Kg (without fluid)

Dimensions and Weights can be customized.

Key features of PMM SLIMSPLIT WINCH

WINCH SYSTEM

Application:

  • Slickline 0.092”, 0.108”, 0.125”,0.140” & 0.160”.
  • Drum capacity – 25, 000 ft to 30,000 ft.
  • Winch drum is driven by hydraulic motor via planetary.
  • Gearbox with chain sprocket system.
  • Fail safe spring return braking system.
  • Over-pull shut-down system: Stop winch rotation on preset desired over pull.
  • Equivalent to ASEP Spooling arm or overhead spooling arm.

MEASURING HEAD

  • Compact & light weight two or three wheel wrap-around design and no change of wheel is required with the change of wire. Make: Benchmark or equivalent.
  • Wire or cable can be removed from measuring head without cutting the wire.

HYDRAULIC SYSTEM

  • Closed loop hydraulic system.
  • Effective fast acceleration and extremely high speeds for effective jarring.
  • Hydraulic tank – 150 litres.

DATA RECORDER & DISPLAY

  • Digital data recorder and display that displays and record real time depth tension and line speed, Data can be downloaded to a USB for further data processing.
  • Alarm setting allow operator to set alarm to pre- determined value of depth and tension. If operator does not take any action the winch should stop automatically at a preset value. Make: Benchmark or equivalent.
  • Mechanical back up depth counter.
  • Back up Hydraulic line pull indicator: Make: Martin Decker or equivalent.

POWER PACK

  • Diesel engine driven hydraulic power pack.
  • Engine make: JCB, Perkins, Cummins and Caterpillar as per application requirement.
  • Engine rating 73 hp to 160 hp as per application requirement.
  • Battery starter and 12/24 VDC Alternator.
  • Spark Arrestor type muffler at exhaust.
  • Suitable air inlet emergency shut down valve with integral flame trap.
  • Crankcase breather flame arrester.

OPTIONS

  • Zone-2 rated with integrated diesel engine driven hydraulic power-pack with Atex certified engine.
  • Touch Screen winchman panel.
  • Air-Conditioned operator cabin.
  • 10 KVA Hydraulic generator.
  • Double drum unit.
  • Open loop hydraulic system.
  • Engine power can be customised.

OPERATOR CONSOLE

  • Hydraulic double lever Joystick for drum rotation, pump and motor displacement control.
  • Engine Throttle Control.
  • Hydraulic Pressure Gauges.
  • Brake Control.
  • Spooling arm and side shift control.
