PMM CONVENTIONAL MANDRELS

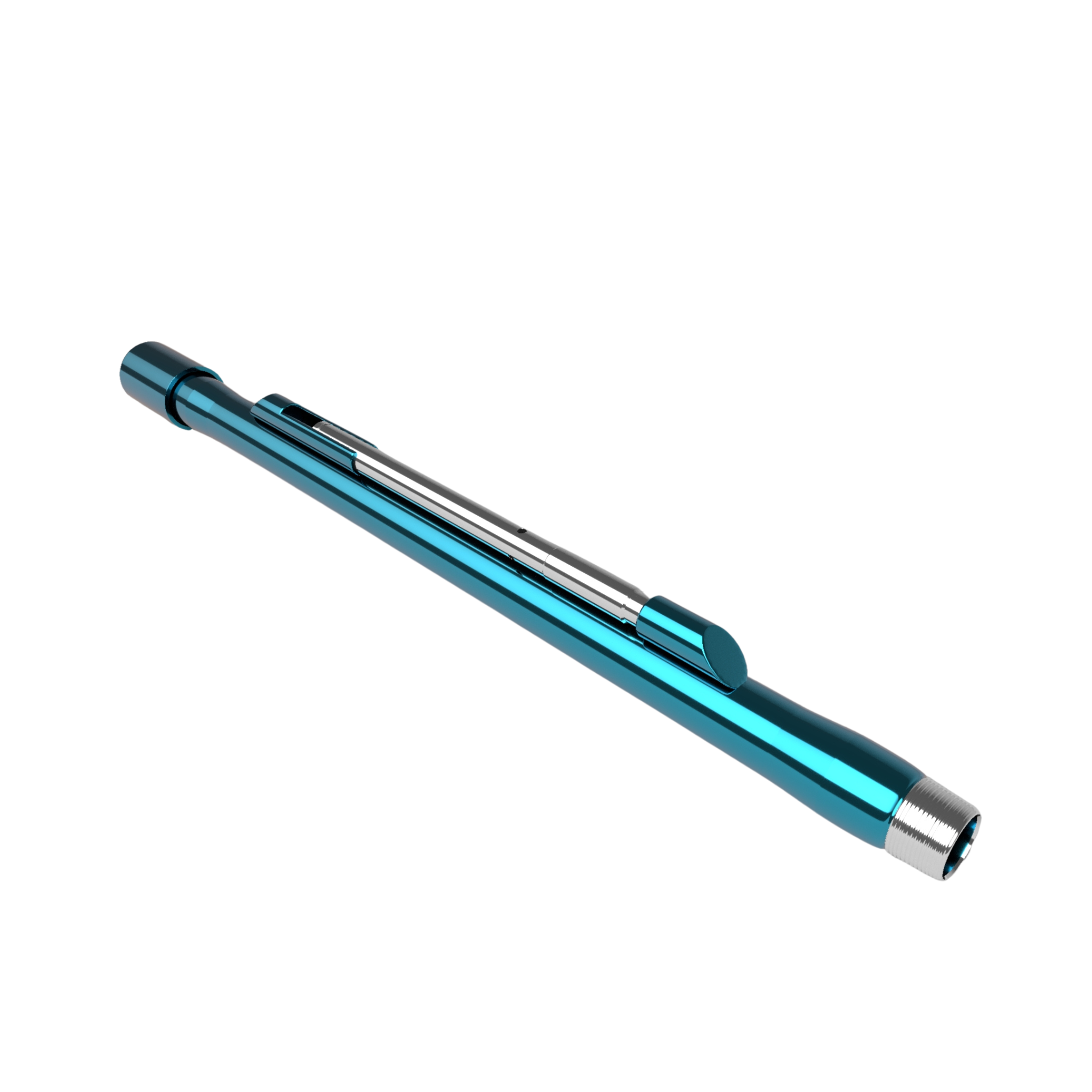

PMM conventional gas lift mandrels are equipped with external lugs to receive tubing-retrievable gas lift and orifice valve. External guards are attached to the outside diameter of the mandrels, surrounding the valves and providing protection during tubing running and pulling operations. These mandrels are available in all grades ranging from N-80 (type 1 & Q), L-80 (type 1, 9Cr, 13Cr) & P110 suitable for both the standard and sour services. Tubing pupjoints and Tubing couplings used to manufacture conventional mandrels are procured from mills having valid API 5CT license.
OPERATIONS
Conventional mandrels are an integral part of the tubing string. They are used to house the gas lift valves and other valves. Injection gas enters the valve and acts on the effective bellow area. As the injection gas pressure overcomes the precharged pressure, the bellow compresses and lifts the stem tip off the seat. Injection gas then flows through the seat, past the reverse flow check valve, and into the production tubing.
Key features of PMM CONVENTIONAL MANDRELS
Special Features
- Field proven design and operation.
- Tool guard and external ported lug protects flow control devices from damage.
- Full traceability through the manufacturing process and 100% dimensional inspection is performed.
- Welding of lug with tubing pupjoint qualifies to ASME Section IX standard with quality control including liquid penetrant testing & ultrasonic testing.
- QA inspection includes weld visual inspection, Hardness testing, internal and external pressure testing and drift testing.
- Replaceable floating seat.
- Manufactured from a variety of premium grade materials to provide corrosion and erosion resistance for the intended application. Stainless steel or Monel options are typically utilized for the outer and main body components.
- These mandrels are available in a variety of thread connections like EU and /or premium thread configurations as required by customers.
Pipe Table
| Engineering Data For Conventional Mandrels | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Mandrel size | Thread Type | OD of Tube (in inch) |
Tubing Weight (in PPF) |
ID of Pupjoint Tubing (in inch) |
Max OD of Mandrel including Coupling (in inch) |
Length of Pupjoint (feet) Tolerance ±3 in. |
| PCM23810-1 | 2-3/8" x 1.0" | EU, 8RD | 2-3/8 | 4.7 | 1.995 | 3.858 | 4 to 6 |
| PCM23810-2 | 2-3/8" x 1.0" | EU, 8RD | 2-3/8 | 5.95 | 1.867 | 3.858 | 4 to 6 |
| PCM27810-1 | 2-7/8" x 1.0" | EU, 8RD | 2-7/8 | 6.5 | 2.441 | 4.412 | 4 to 6 |
| PCM27810-2 | 2-7/8" x 1.0" | EU, 8RD | 2-7/8 | 8.7 | 2.259 | 4.412 | 4 to 6 |
| PCM23815-1 | 2-3/8" x 1.5" | EU, 8RD | 2-3/8 | 4.7 | 1.995 | 4.36 | 4 to 6 |
| PCM23815-2 | 2-3/8" x 1.5" | EU, 8RD | 2-3/8 | 5.95 | 1.867 | 4.36 | 4 to 6 |
| PCM27815-1 | 2-7/8" x 1.5" | EU, 8RD | 2-7/8 | 6.5 | 2.441 | 4.84 | 4 to 6 |
| PCM27815-2 | 2-7/8" x 1.5" | EU, 8RD | 2-7/8 | 8.7 | 2.259 | 4.84 | 4 to 6 |
